Built for real-world energy challenges.
We design and integrate turnkey renewable systems that slash downtime, cut fuel costs, and meet today’s toughest sustainability targets. Whether your project demands mobility, permanence, or rapid scalability, you’ll find a purpose-built answer in the lineup below.
Patented Vertical-Axis Technology
Turnkey Renewable Microgeneration & Energy Storage
OUR PRODUCTS
Purpose-built clean power generation systems engineered for extreme durability, low maintenance, and continuous off-grid reliability.
6.25 kW VERTICAL-AXIS WIND TURBINE
Key Specs
- Rated Output: 6.25 kW AC (at 25 mph / 11 m s⁻¹)
- Tower Heights: 30 ft, 40 ft, 60 ft, 90 ft (9 m, 12 m, 18 m, 27 m)
- Cut-in / Gen Speed: 4.5 mph / 6.7 mph (2 m s⁻¹ / 3 m s⁻¹)
- Survival Wind: 70 mph (113 km h⁻¹)
- Noise @ 15 ft: 65 dB
- Rotor Diameter: 78 in (1.98 m) Rotor Weight: 1,650 lb (748 kg)
- Operating Temp: –45 °F to +104 °F (–45 °C to +40 °C)
- Recyclability: 98 % of materials
Core Features
- Omni-directional Savonius–Darrieus hybrid—no yaw motor required.
- Low RPM (< 120) means minimal vibration and zero wildlife strikes in 25 k+ hours.
- Hydraulic tilt option slashes tower-raise time and service costs.
- TÜV-tested; protected by 11+ global patents.
PORTABLE POWER TRAILER (PPT)
Key Specs
- Generation Capacity: 22.5 kW (2 × 6.25 kW VAWT + ≈ 10 kW PV)
- Average Output: ≈ 6 kWh per hour (annualised)
- Battery Storage: 100–200 kWh Li-ion (expandable)
- Backup Genset: 5 kW diesel (optional)
- Road Mode Dimensions: 53 ft L × 8 ft 6 in W × 13 ft 2 in H (16.2 m × 3 m × 4 m)
- Deployed Footprint: 29 ft 11 in W (9.1 m); Tower height 43 ft (13.1 m)
- Curb Weight: ≈ 26,500 lb (12,020 kg)
- Noise @ 15 ft: 65 dB
- Operating Temp: –45 °F to +104 °F (–45 °C to +40 °C)
Core Features
- Drop-and-go micro-grid: set up in hours, no trenching or foundations.
- Hybrid wind-solar curve plus big batteries deliver 24 / 7 renewable power.
- Satellite / cellular SCADA for unmanned monitoring anywhere.
- Ideal for disaster relief, construction camps, mining sites, temporary events.

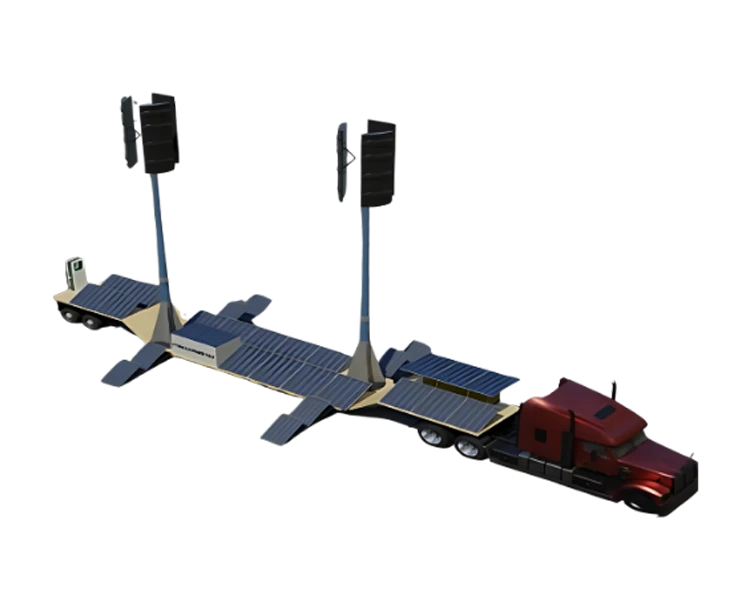

PORTABLE POWER TRAILER EV (PPT-EV)
Key Specs
(Includes all PPT specs unless noted below)
- Charging Hardware: 4 × 19.2 kW Level-2 or 1 × 150 kW DC-Fast (field-swappable)
- Compliance: NEC 625 · UL 2202/2594 · CSA SPE-3000
- Payment System: Revenue-grade metering, credit-card and app kiosk
Core Features
- Off-grid DC fast charging—zero transformer upgrade, zero utility delay.
- Generates, stores, and sells renewable kWh on-site; trailers re-site with traffic patterns.
- Fits big-box parking lots, rural service stations, highway rest areas, event venues.
- Same patented VAWTs that power the standard PPT, guaranteeing component commonality.
Reliable Renewable Telecom Power
Continuous 24/7 power for critical cell towers and remote communications.
Our stand-alone vertical-axis turbine delivers 6.25 kW of continuous power and pairs with site-sized Li-ion storage to keep remote towers online 24/7. Low-RPM, ration minimizes maintenance visits and complies with strict rooftop noise limits, while a temperature range of −45°F to +104°F (−43°C to +40°C) ensures uptime in the harshest climates. By eliminating diesel runs and grid outages, operators reduce OPEX, improve network reliability, and advance sustainability goals.
Portable, Off-Grid EV Charging
High-speed charging infrastructure without transformer upgrades or utility delays.
Deploy a road-legal 53-ft (16.2 m) trailer equipped with dual 6.25 kW wind turbines, 10 kW of solar, and up to 200 kWh of onboard storage—plus 150 kW DC fast charging or multi-Level 2 EV chargers. Because the unit generates and stores its own power, you eliminate the need for transformer upgrades, trenching, or long permitting cycles—cutting installation time from months to hours. Relocate the trailer as traffic patterns shift, monetize every kilowatt you produce, and meet aggressive ESG targets with a zero-emission, grid-independent solution.
OUR PROJECTS
Mundo-Power: Proven Results in Powering Telecommunications, Infrastructure & Urban Energy.
Reliable Off-Grid Telecom Power
We delivered a robust off-grid renewable solution, overcoming unreliable grid connections that previously threatened critical telecom infrastructure. Our deployment eliminated downtime risks, ensuring continuous connectivity and reinforcing our expertise in telecom-specific renewable energy solutions.

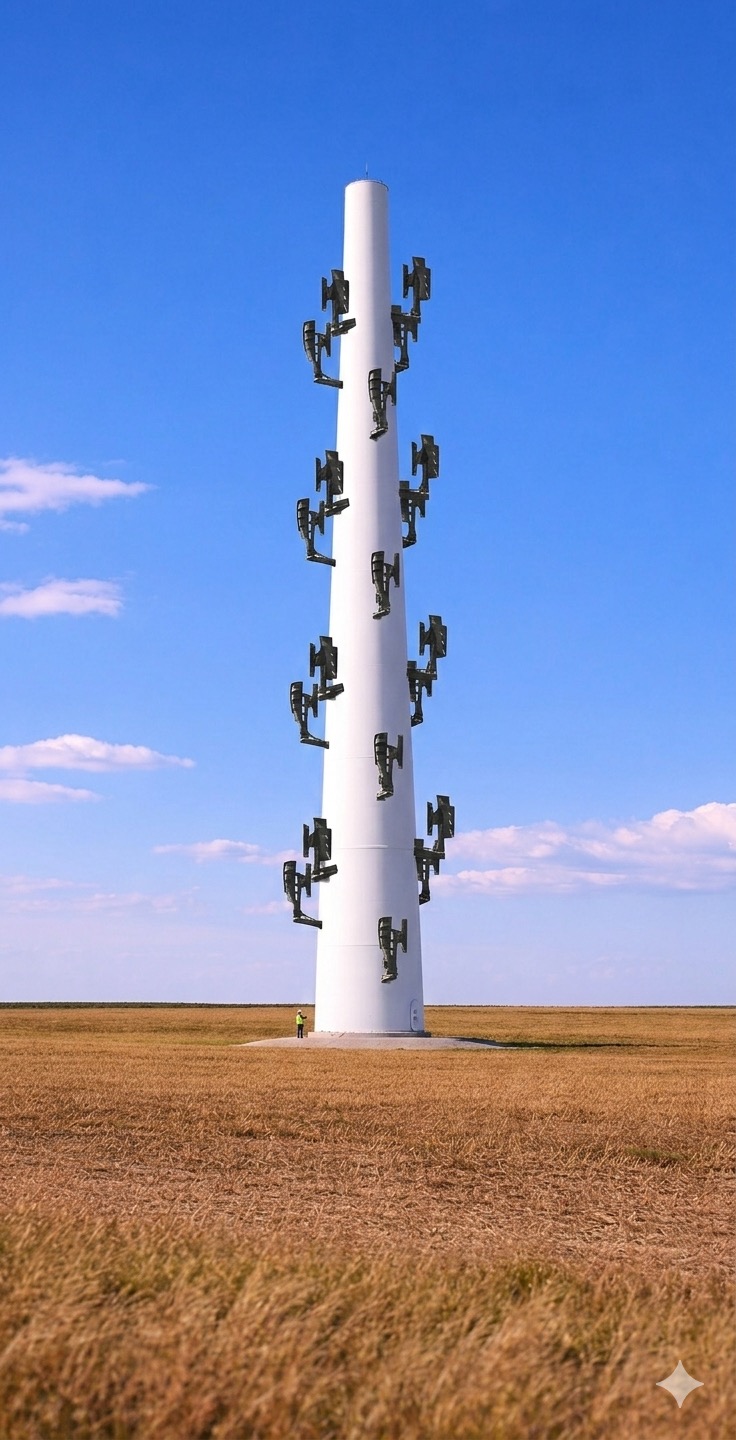

Reuse the Towers. Rebuild the Future.
Project Re-Wind transforms retired horizontal-axis wind sites into productive assets by installing compact vertical-axis turbines on existing towers and foundations. By reusing infrastructure, we eliminate demolition costs, reduce carbon emissions by over 80%, and deliver new revenue streams from sites that would otherwise be abandoned.

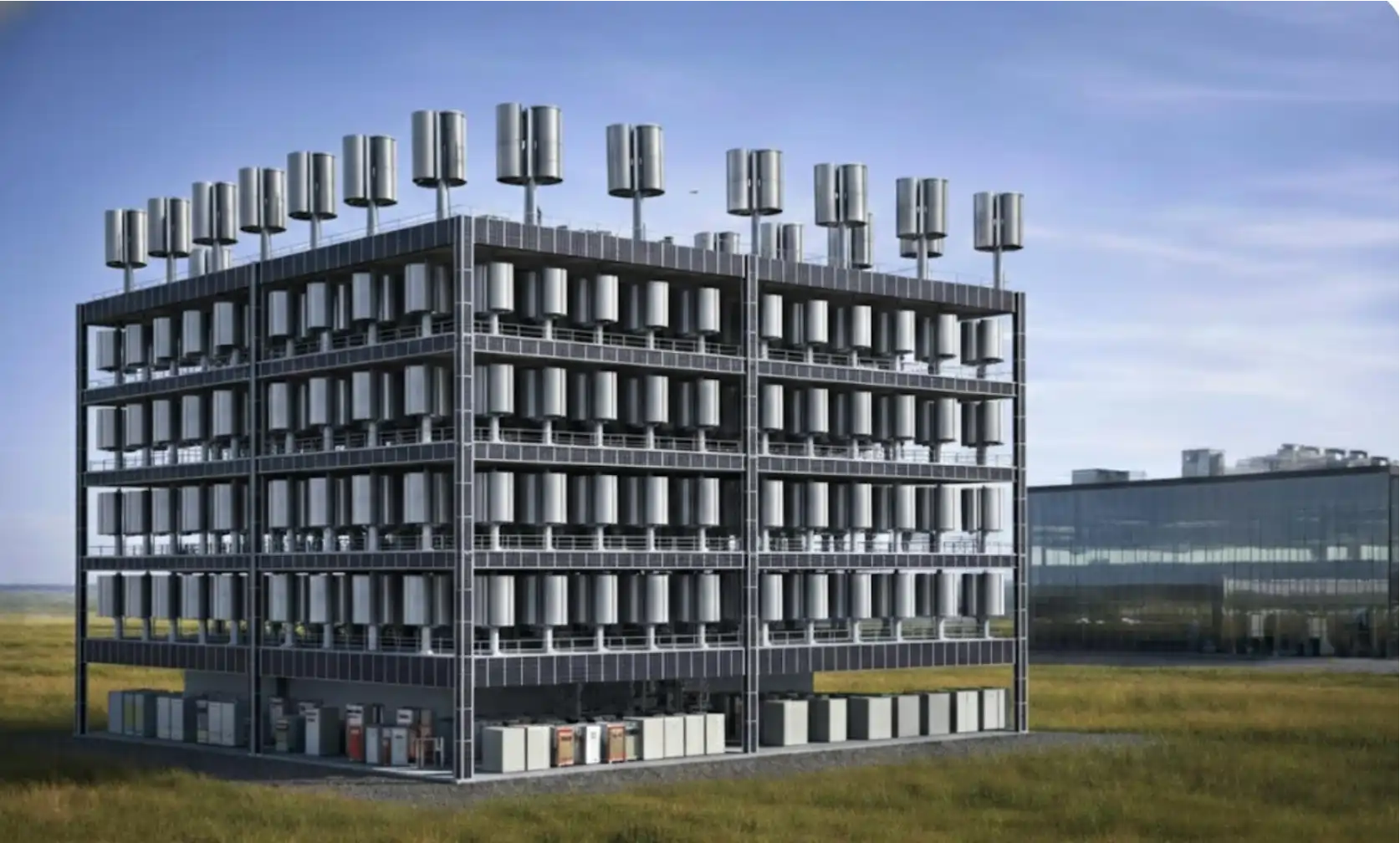

High-Density Urban Wind Power
Compact vertical-axis turbines with optional solar, storage, and grid interconnection enable continuous operations where land is constrained. Dense turbine deployment boosts energy density while keeping noise and vibration low.
